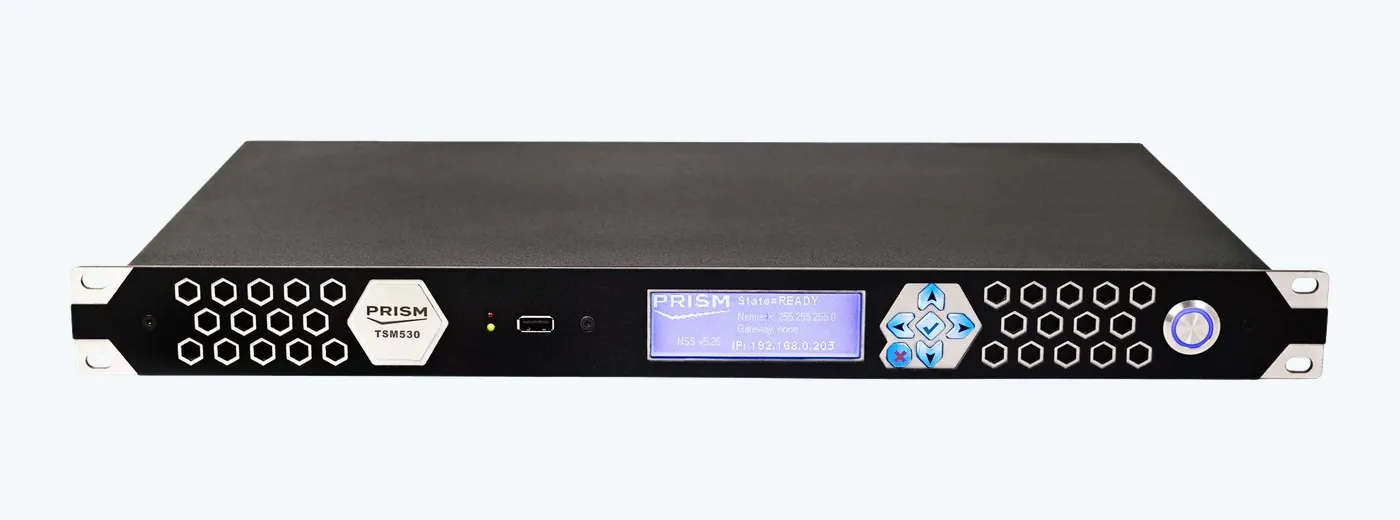

Prism TSM530
A tamper-responsive payment hardware security module approved under PCI PTS HSM v4.0, in a 1U rack appliance.
Approved cryptography, bought at the capacity you need.
Tamper-responsive and tamper-resistant, approved under PCI PTS HSM v4.0 under approval number 4-20384.
Transaction processing services over TCP/IP on an Ethernet interface, plug-in compatible with Postilion, Traderoot, iZealiant Access Control Server and PayTabs SwitchOn software.
Models from 20 Triple DES PIN translations per second upwards, upgradeable in the field at your premises as volumes grow.
Configuration and day-to-day management through a web browser interface, with full documentation supplied and tutorials available.
What it does in the transaction path
AES and TDES, DUKPT and master/session; ISO 9564 / X9.8 formats 0, 1, 3 and 4; PIN verification by IBM-3624 PIN offset and Visa PVV.
CVV, CVV2, CVC and dynamic CVV (CVC3); MAC generation and verification to ANSI double-key X9.19 and ISO 9797-1 algorithm 3.
X9 TR-31 and AKB key block formats; management of encrypted keys compatible with X9.24-1, X9.24-2, X9.24-3 and ISO 11568; remote key loading and distribution to PIN entry devices and ATMs under TR-34.
EMV v3.x and v4.x transaction processing and secure messaging including PIN change; TDES and AES encryption and decryption in support of PCI DSS; point-to-point encryption using TDES DUKPT and BPS; audit trail.
Algorithms, standards and dual control
Triple DES; AES (FIPS 197); BPS format-preserving encryption; RSA key generation, signing and verification up to 4096 bit (X9.31); ECC from P-224 to P-521; SHA hash algorithms (ISO 10118 / FIPS 180-4); HMAC (FIPS 198-1).
Built-in access control enforces dual control for sensitive operations such as key loading. Appointed security officers enter their passwords on the Prism Key Loading Device to authorise them, and key components are entered the same way.
ANSI X9.8, X9.19, X9.24, X9.31, X9.52, TG-39, TR-31 and TR-34; FIPS 180-4, 186-4, 197 and 198-1; ISO 9564, 10118, 11568, 13491 and 20038.
Mobile security extensions for SMS and mCommerce security, alongside the banking and EFT feature set.
Model TSM530-NSS
19″ rack-mount appliance, 1U high: 483mm wide, 250mm deep, 4.65kg.
Two Gigabit (10/100/1000 Mbps) Ethernet ports and a USB port for software upgrades and the Prism Key Loading Device. Any platform that can communicate over TCP/IP.
Dual power inputs, 100–240V AC 50–60Hz, 50W maximum consumption.
Operating temperature 0–40°C, relative humidity 5–95% non-condensing. RoHS compliant, and compliant with IEC 62368-1, EN 55032 and EN 55035.
Specifications as published by Prism Payment Technologies (Pty) Ltd, TSM530 datasheet, April 2026, and subject to change by the manufacturer.
